BUFFER VESSELS
Vertical Buffer Vessels

Manufactured in Carbon Steel or Stainless Steel, buffer vessels are manufactured to the pressure directive PED 2014/68/EU

The drawing and chart are for guidance only, buffer vessels can be manufactured to any size from 10 litre to 100,000 litre, connections can be situated anywhere you require, diameter and height can be altered to suit your particular requirements.

Installation

  • Unless specifically ordered for outside, positioning of the vessel must be indoors.
  • The base must be level and adequate to support the unit.
  • Vessels ordered specifically with inspection covers, please ensure enough room exists to gain access to the opening.
  • Pipe work connected to the vessel must be supported to prevent unnecessary strain on the buffer vessels connections.
  • Isolation valves are to be installed to enable servicing and maintenance.
  • Ensure adequate venting for air removal during filling and venting.

Commissioning & Operation

  • Do not operate the buffer vessel at pressures or temperatures in excess of those specified as a standard this is 10 bar and 110 degrees Centigrade.
  • Do not subject the vessel to any vacuums.
  • If the vessel is open vented and shares a common vent with other vessels install a 3-way valve.
  • Upon initial system fill open all isolation valves connected to the vessel.
  • Check all flanges and screwed joints for tightness.
  • All liquid is to be drained from the vessel when the unit is out of operation (long periods) to prevent freezing or corrosion.


Size Chart

Litre A B C D E Z X Dry Weight - Kilos
100 1050 406 570 396 740 25 25 60
200 1280 500 773 410 950 25 25 93
500 1450 750 832 460 1060 25 25 146
750 2010 750 1392 460 1620 25 25 209
1000 1890 900 1284 460 1510 25 25 206
1250 2280 900 1674 460 1900 25 25 258
1500 1700 1200 882 575 1180 25 25 283
2000 2140 1200 1324 575 1620 25 25 365
2500 2590 1200 1772 575 2070 25 25 438
3000 2210 1512 1166 690 1610 25 25 563
3500 2500 1512 1460 690 1930 25 25 626
4000 2780 1512 1740 690 2210 25 25
4500 2430 1800 1158 840 1720 25 25
5000 2630 1800 1358 840 1920 25 25
6000 2600 2000 1268 870 1860 25 25
8000 3230 2000 1898 870 2490 25 25
10000 3860 2000 2528 870 3120 25 25
15000 3870 2512 2340 1030 2990 25 50
20000 4880 2512 3350 1030 4000 25 50

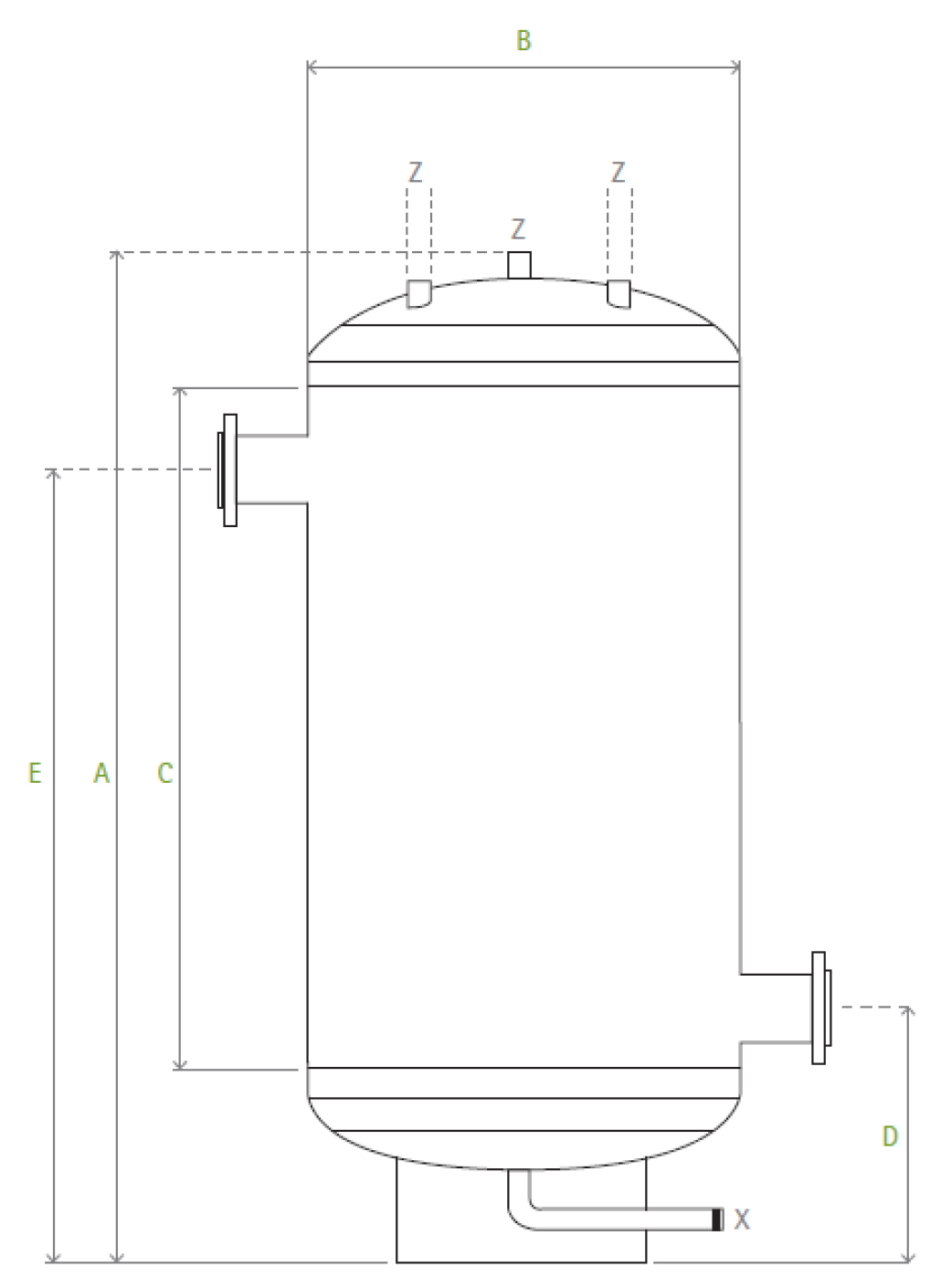

Buffer Vessel Vertical Diagram
