POD Insulation

Energy saving thermal insulation jacket and frost protection

Our new innovative Pod Insulation System allows our low conductivity stainless steel units to be even more environmentally friendly.

The thermal efficiency properties experienced from this insulation allow your systems to remain working at their optimum level.

The insulation, which is coated in Ventureclad 1577CW foil conforms to all relevant fire and thermal properties making absolutely sure your separators are protected from the atmosphere and do not leak any energy.

Our insulation is manufactured and moulded around our own very unique stainless steel separators.

Features and Benefits

  • Insulation Thickness
    20mm thick moulded Polyisocyanurate Foam
  • Operating Temperature
    -10°c to +120°c
  • Thermal Conductivity
    0.023W/MK
  • Typical Density
    50–60 KG/m3
  • Fire Properties
    BS476 Part 7, 1971 Class 1, Surface spread of flame, BS476 Part 5 1979, Ignitability Class P.
  • Moisture Vapour Transmission
    38°c 88% Relative humidity (cut Surface) – 1.6 Perms/2"
  • External Applications
    Our insulation PODS can be installed inside and outside as they are coated with Ventureclad 1577CW to protect against the elements inside and outside.

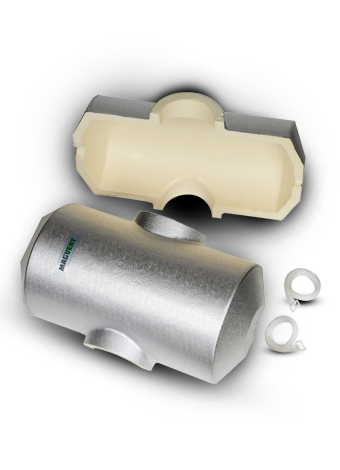

POD Insulation System Parts POD Insulation System Cut Out POD Insulation System

Fitting of the Insulation

The insulation cover is moulded around our own units so they fit perfectly and there is no need for any modifications on site.

  1. Remove the Velcro straps holding the jacket together.
  2. Put both halves carefully around the separator.
  3. Use the 16mm Velcro straps provided to wrap around the insulation and pull tight to fit.
Model No.Dimensions (mm)
D
POD-50/65 170
POD-80/100 220
POD-125/150 325
POD-200 410
Download the PDF O&M File
